Quick Details

  • Type: Wrapping Machine
  • Condition: New
  • Application: Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
  • Packaging Type: Cartons, Case
  • Packaging Material: Plastic
  • Automatic Grade: Automatic
  • Driven Type: Electric
  • Voltage: 220V/380V/400V/415V 3Phase
  • Power: 0.75KW
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: YUPACK
  • Model Number: MH-101A
  • Dimension(L*W*H): 1100*630*1420mm
  • Weight: 220kg
  • Certification: CE certification
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Strapping speed: 2.5/strap
  • Frame size: W800*H600mm
  • Strap width: 12-15mm
  • Strap thickness: 0.55-0.8mm
  • Table height: 750mm
  • Control system: PLC

Packaging & Delivery

Packaging Details wooden case
Delivery Time 10 working days after received your payment
Product Description

MH-101A automatic strapping machine is a productive solution to most polypropylene strapping tasks.This automatic Arch Strapping Machine features the "Auto-Feeding" function that automatically feeds polypropylene strapping to arch and is ready for each application.The "Auto-Positioning" system automatically positions a secures the polypropylene strapping efficiently for each cycle.The "Jam-Free" feature ejects missed strap cycles,and resets the unit.User friendly controls allow operator to chose between panel mounted controls, foot pedal, or table top ball switch.Cycle rate:Up to 30 straps per minute.Actual production will vary depending on package size,chute size and operator dexterity.Portable for convenience.220V,1phase/3phase power required.Polypropylene strapping is sold separately.



Technical Features



1.Steel knife box,wear a higher degree.
2.Unique design tension,tightening stronger.
3.Clamshell panels,repair warranty.
4.The new electric devices,heating fast,high speed and long use life
5.Single-chip electronic control,fully functional,easy to operate of the strapping machine.

6.The machine adopts international brand electrical parts which ensure the machines good quality.

7.Electrical accessiores:"MITSUBISHI" PLC control,and"ORMON"photoelectric switch control,Schneider relay.

8.It can be used individually,and equipped with designed conveyor to fulfill unmanned strapping system.

9.Add on a safety device,built for 24 hours continuous operation

Model

MH-101A

Brand

YUPACK

H.S Code

8422400000

Grade

Automatic

Origin

Qingdao,China

Maximum tension

60Kg

Strapping speed

2.5seconds/cycle

Arch size

W800*H600mm(standard machine) can customize arch

Material of arch

Aluminum

Table height

750mm

Width of pp strap

12/13/13.5mm

Thickness of pp strap

0.55-1.2mm

Voltage

220V-415V 3PH

Power

0.75KW 50/60HZ

Machine size

L1400*W630*H1430mm

Packing size

L1500*730*H1530mm

Machine weight

200Kg

Gross weight

220Kg

CE certificate

Approved

Warranty

12months

Warranty parts

Motor/Breaker/Control switch etc





Packaging & Shipping

Wooden case:L1480*W770*H1600mm(standard machine)

delivery time:have stock(standard machine);

15-25working days(customize machine-change voltage or customize bigger arch)

Company Information

Qingdao Ausense Packaging Equipment Co., Ltd  is new a high-tech enterprise,which is specialized in research and manufacture of automatic conveyor and packaging machinery.A variety of conveying equipments are designed,planed and produced by Ausense,such as various roller conveyor lines,belt line,Retractable conveyor,chain conveyor,fixtures plate conveyor line,mesh belt conveyor,PCB plug cable,logistics system sorting machine,elevator,stacking machine,three-dimensional storage,and some other automatic production line and conveying equipment. Ausense's product has gain favour of many top 500 enterprise in china.

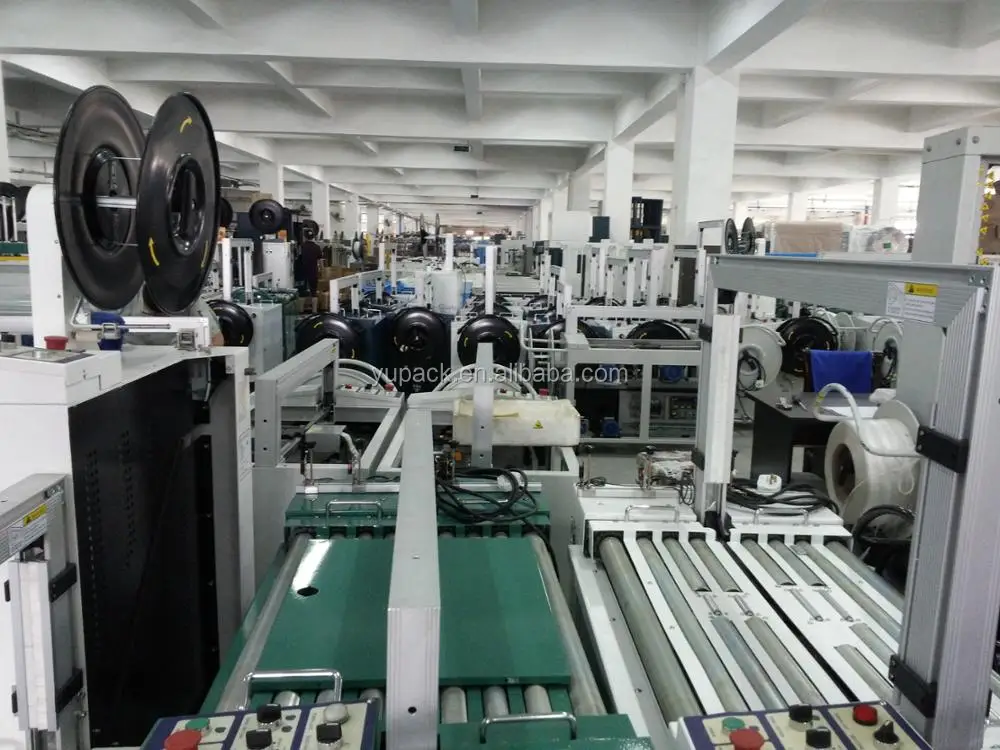

Our factory



Our office

A variety of activities


Customer visit our factory

The certificates&honor
