Quick Details

  • Type: Wrapping Machine
  • Condition: New
  • Application: Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
  • Packaging Type: Film
  • Packaging Material: Plastic
  • Automatic Grade: Semi-Automatic
  • Driven Type: Electric
  • Voltage: 220V/50-60HZ[Optional]
  • Power: 10kw
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: YUPACK
  • Model Number: FQL-450A+BSD4525A
  • Dimension(L*W*H): L1580*W720*H1000mm
  • Weight: 230kg
  • Certification: CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Color: White
  • Warranty: 1 year
  • Controller: English

Packaging & Delivery

Packaging Details sea-worthy wooden case
Delivery Time 10 working days

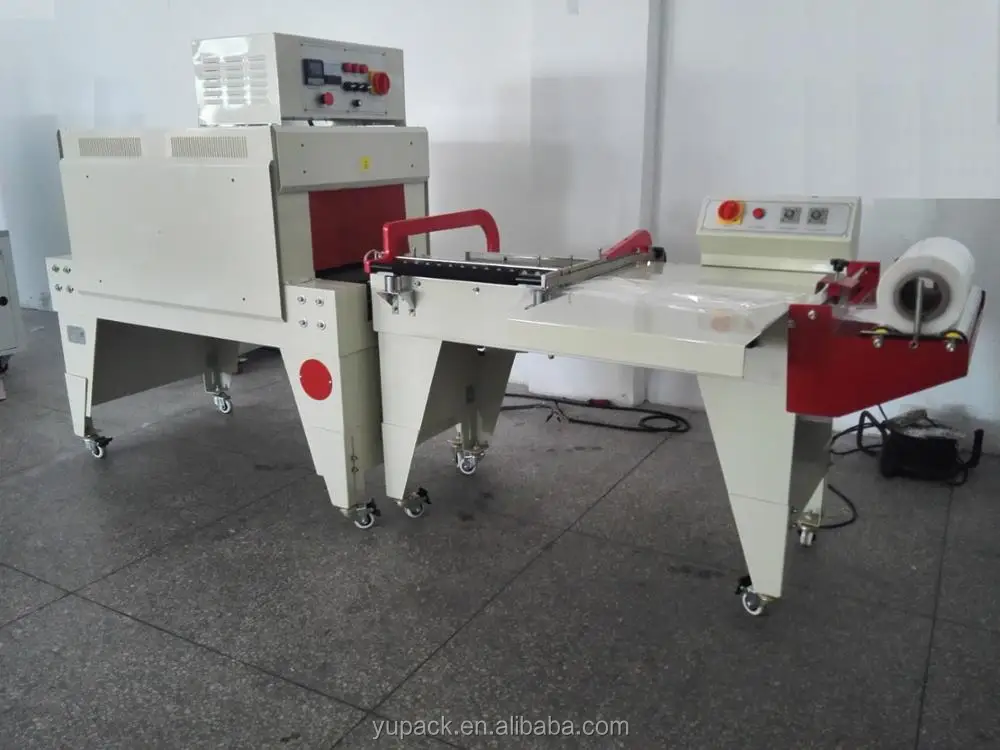

Semi-auto L bar sealer cheap shrink wrap machine with CE

Product description

L bar sealer heating shrink wrapping machine with heat tunnel is ok for packing many kinds products. Such as commodities, cosmatics products, some goods in small box, wooden board and so on. Mainly use in foods industries,supermarket, a small shop, even other industries.


Machine characteristics

  • Stainless steel tube heating shrink tunnel
  • internal recycle, uniform heating shrink oven
  • Imported Italy silicon rubber tube material
  • International advanced technology shrink wrapping machine
  • Working with semi-automatic L type sealing and cutting machine FQL450F or L type automatic sealing and cutting mahcine,etc.
The parts L type semi-automatic sealing and cutting machine
1.L type cutting knife---coating "DUPONT" Tflon, not-stick the film; Alluminum alloy material, longer use life
2.Silicon gel strip----higher temperature resistance
3.PC controller-----easy to operate and optional PLC controller
Heat Shrink Tunnel Technical Parameters
Power supply220V/50HZ   single phase
Converyor speed0-15m/min
Sealing knife size L550*W450mm
Converyor loading15kg
Machine sizeL1450*W670*H1000mm
Machine weight110kg
Shrink filmPOF.PVC.PP

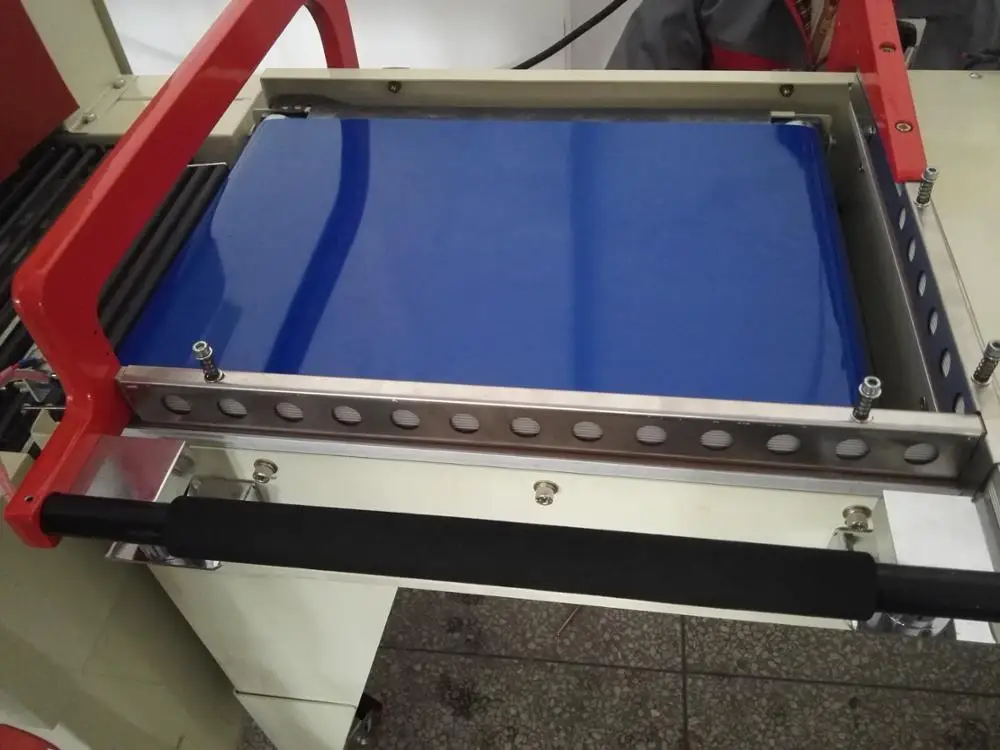

L bar sealer

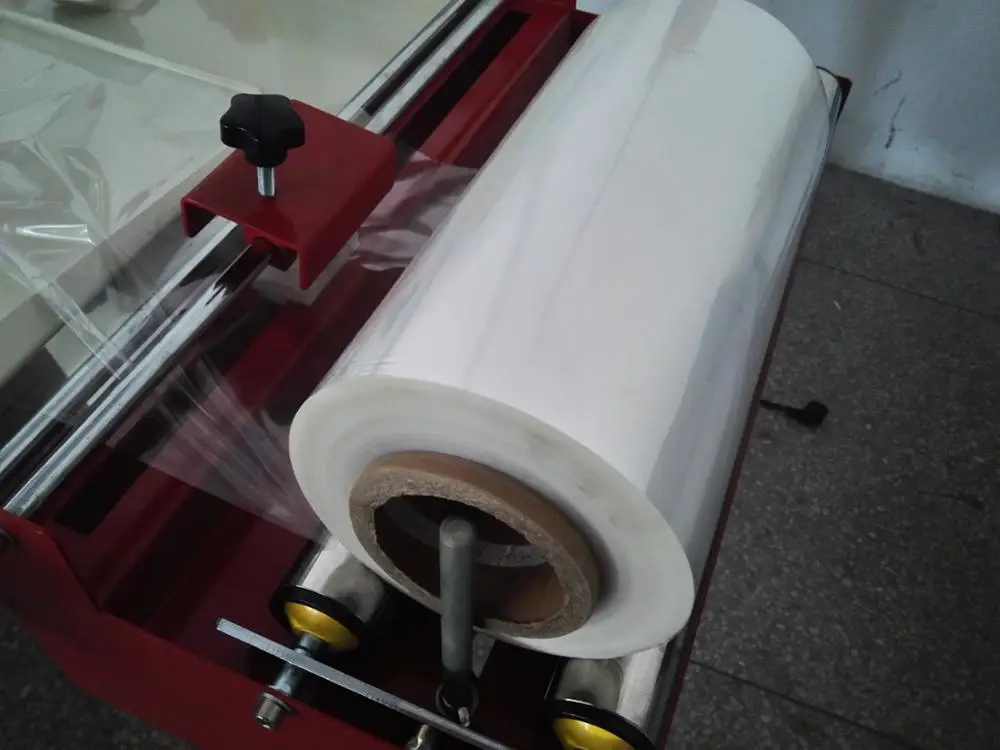

Film carriage
L bar sealer controller

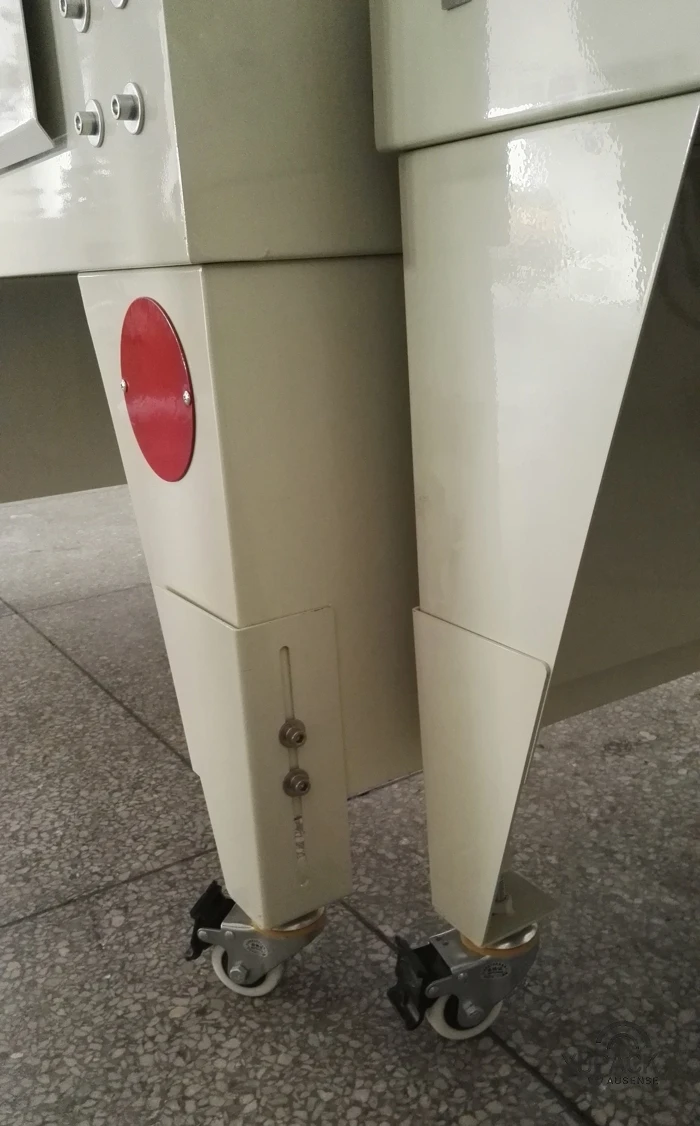

Wheel with brake
Adjustable height of L bar sealer and heat shrink tunnel
Machine Chracteristics
  • Sticking and high temperature resistance alloy sealing & cutting knife
  • Plate Tflon on the knife, non-stick the film
  • Thermal insulation plate prevent somebody from scalding
  • Thorn membrane round, realize better shrinking performance
  • Imported electronic appliances, stable performance
  • Easy to operate
Heat Shrink Tunnel Technical Parameters
Power supply380V/50Hz, 3phase
Tunnel sizeL1000*W450*H250mm
Converyor speed0-15m/min
Shink prouduct sizeL520*W410mm
Converyor loading 25kg
Machine sizeL1200*W690*H1200mm
Machine weight110kg
Shrink filmPOF.PVC.PP

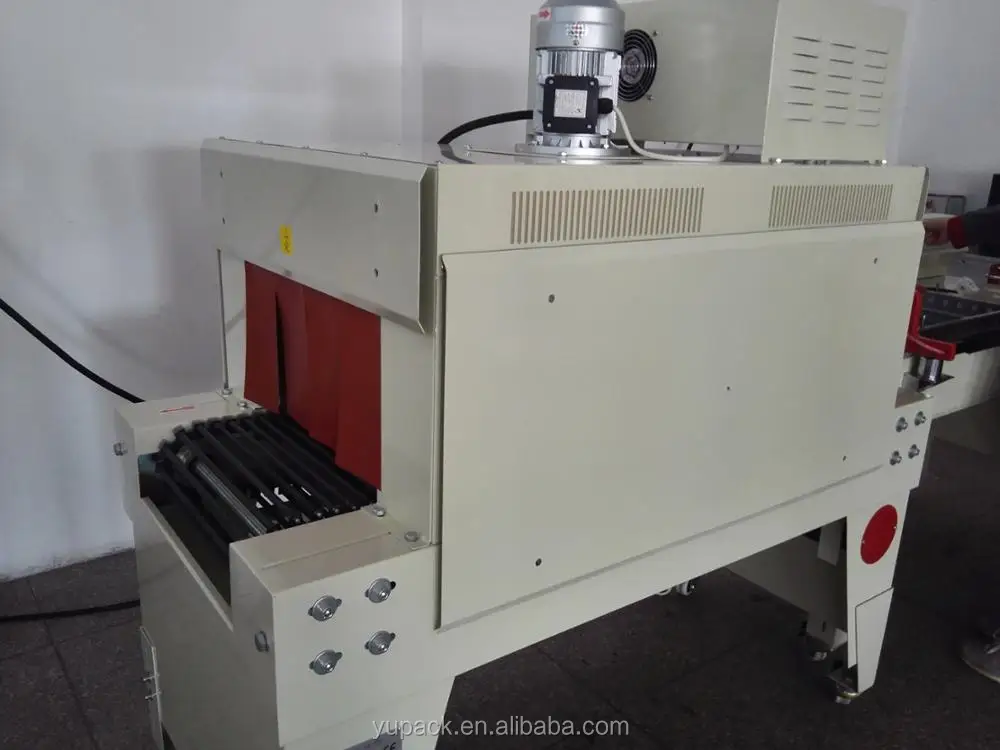

Heat shrink tunnel
English language controller

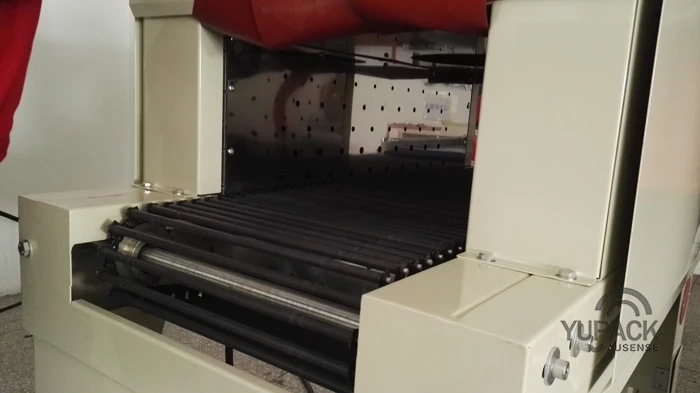

Tunnel internal instructure
Factory workshop




Company info



Qingdao Ausense was established in 2001,which is professionally specialized for the planning of complete end-of-line packaging equipment, R & D and manufacturing. After years of practice, we have automatic carton forming,carton package, sealing, shrinking, vacuum,strapping, palletizing, wrapping, transportation and other 10 series that are over 60 varieties of packaging equipments. Company rely on the automation industry chain advantages, the integration of technology research and development, design, production, in conjunction with the customer site applications, providing customers with intelligent, flexible, one-stop information technology automated packaging solutions.


Ausense Company flagship brand "YUPACK".we provide vacuum machine, strapping  machine,etc Chinese patents. All products had passed the European CE certification; manufacturing plants involved in the Chinese machinery industry standard "mechanical strapping  machine""carton sealer" drafting; Axiomtek products are widely used in Chinese companies and some well-known Fortune 500 companies, the product exported to Europe, America, Southeast Asia more than 30 countries.


In 2016 year,Qingdao Ausense has introduced into the robot, after packaging machinery unit, becoming the modular standard configuration equipment, can effectively integrate into the enterprise application MES manufacturing execution system, it is possible to provide complete automation industry from 3.0 to 4.0 transformation and upgrading services to multi-industry.
