Quick Details

  • Type: Wrapping Machine, Sleeve Shrink Wrapping Machine
  • Condition: New
  • Application: Beverage, Chemical, Commodity, Food, Medical, Water,Honey,Milk, etc
  • Packaging Type: Film
  • Packaging Material: Glass, Metal, Paper, Plastic, Wood
  • Automatic Grade: Semi-Automatic
  • Driven Type: Electric
  • Voltage: 380V/50Hz
  • Power: 24KW
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: YUPACK
  • Model Number: ST6040Q
  • Dimension(L*W*H): L3000*W950*H1700mm
  • Weight: 220KG
  • Certification: CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Working efficiency: 12-18 sets/min
  • Tunnel size: L1800*W600*H400mm (can be customized)
  • Air pressure: 0.4-0.6MPa
  • Sealing cutting size: L600*W400mm
  • Conveyor width: 300mm
  • Shrink film: PE
  • Machine size: L2100*W1350*H1900mm/L2750*W840*H1500mm
  • Machine weight: 220kg

Packaging & Delivery

Packaging Details Standard sea-worthy wooden box packing
Delivery Time 15 days after receive your deposit payment

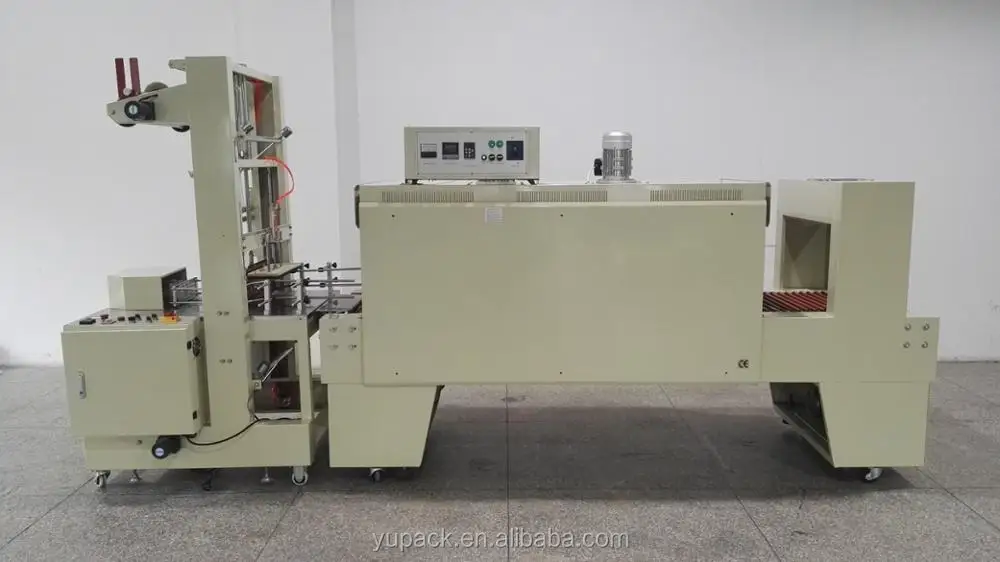

Semi Automatic ST6040Q Sleeve bottle shrink wrap machine

Product Description

Product Features

Optional arranging bottle device,without manual operation.
Matching chain roller or Teflon transmission system.
Machine size can be customized.
Widely used in spring water, beverage, milk, zip-top can drinks, beers and other bundle packing.
Cutting machine working with PE shrink tunnel, realize perfect packing performance.
Imported Japn"OMRON" "MISTUBISHI" "FUJI" electric appliances.

Technical indicators

Model

ST6040Q

Voltage

220V50Hz, single phase

Power supply

2kw

Working efficiency

3-6sets/min

Sealing and cutting time

0.5-1.5s

Air pressure

0.4-0.6MPa

Sealing and cutting size

L600*W400mm

Working table size

850±50mm

Machine weight

220kg

Machine size

L1150*W910*H1860mm

Shrink film

PE



Model

BSE6040A

Voltage

380V50Hz, 3phase

Power supply

20kw

Conveyor speed

0-15m/min

Shrinking size

L1800*W600*H400mm

Product size

W500*H350mm

Conveyor loading

25kg

Machine weight

280kg

Machine size

L3000*W950*H1700mm

Shrink film

PE























Detail info picture:

Sleeve sealer

Sleeve sealer film carriage

Sleeve sealer cutter: 600mm





Sleeve sealer controller button

Shrink wrapping machine Shrink tunnel



Shrink tunnel controller



Warehouse







Company detail

Qingdao Ausense was established in 2001,which is professionally specialized for the planning of complete end-of-line packaging equipment, R & D and manufacturing. After years of practice, we have automatic carton forming,carton package, sealing, shrinking, vacuum,strapping, palletizing, wrapping, transportation and other 10 series that are over 60 varieties of packaging equipments. Company rely on the automation industry chain advantages, the integration of technology research and development, design, production, in conjunction with the customer site applications, providing customers with intelligent, flexible, one-stop information technology automated packaging solutions.



Ausense Company flagship brand "YUPACK".we provide vacuum machine, strapping  machine,etc Chinese patents. All products had passed the European CE certification; manufacturing plants involved in the Chinese machinery industry standard "mechanical strapping  machine""carton sealer" drafting; Axiomtek products are widely used in Chinese companies and some well-known Fortune 500 companies, the product exported to Europe, America, Southeast Asia more than 30 countries.



In 2016 year,Qingdao Ausense has introduced into the robot, after packaging machinery unit, becoming the modular standard configuration equipment, can effectively integrate into the enterprise application MES manufacturing execution system, it is possible to provide complete automation industry from 3.0 to 4.0 transformation and upgrading services to multi-industry.

Semi Automatic ST6040Q Sleeve bottle shrink wrap machine
